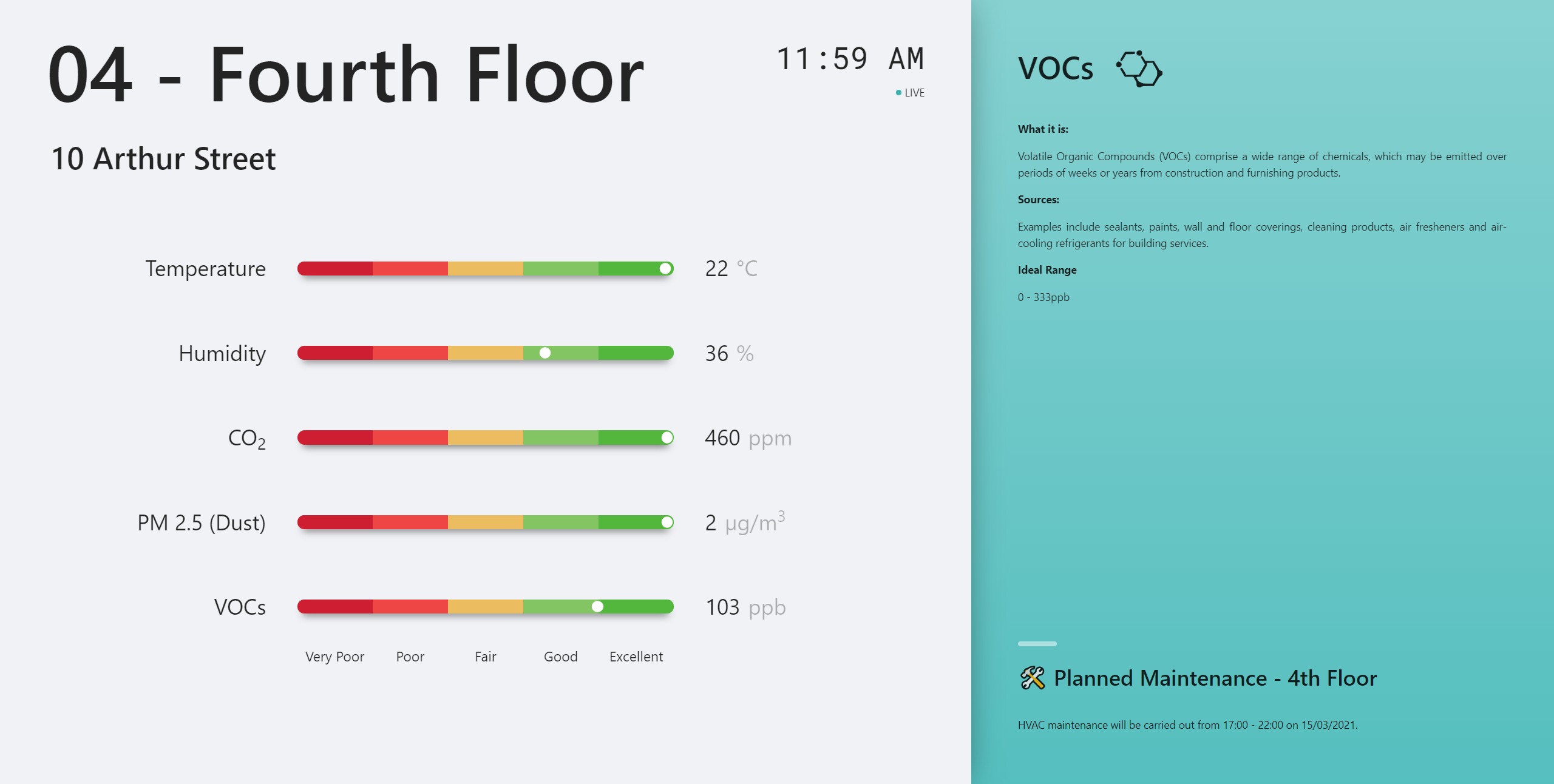

The Wellness View displays the indoor air quality for a building, floor or room. Providing an overview of all key indoor air quality parameters, the Wellness view is ideal for sharing real-time indoor air quality information with your staff and tenants, helping with peace of mind about the safety of the air in your space and demonstrating your investment in maintaining healthy air.

The following Indoor Air Quality (IAQ) parameters are shown on the Kiosk display:

Each parameter has an individual scale showing whether the current reading is considered:

The wellness kiosk will update at the same frequency as your IAQ sensors. The maximum refresh interval is every 5 minutes.

Alongside IAQ indicators, the Wellness View provides staff with educational explanations of what each indoor air parameter means, customisable for each kiosk and displayed within the sidebar. Like other kiosk views, the Wellness kiosk can be displayed on any tablet or tv through the URL link.

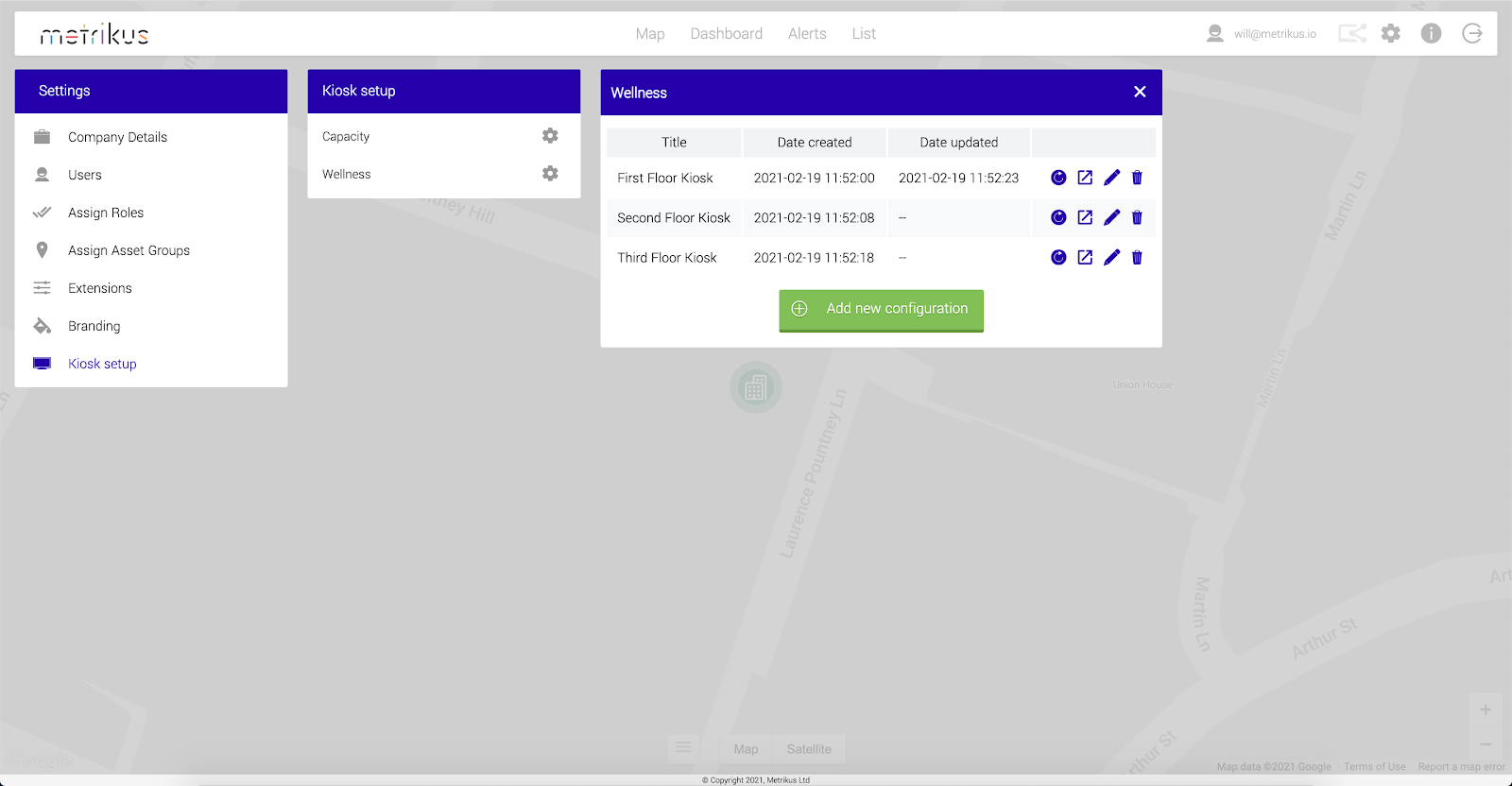

To set up your wellness kiosk, navigate to the settings page, using the ‘settings’ icon in the nav bar at the top of your screen and select ‘Kiosk Setup’.

From here, select the type of kiosk you want to create. In this case, select ‘Wellness’.

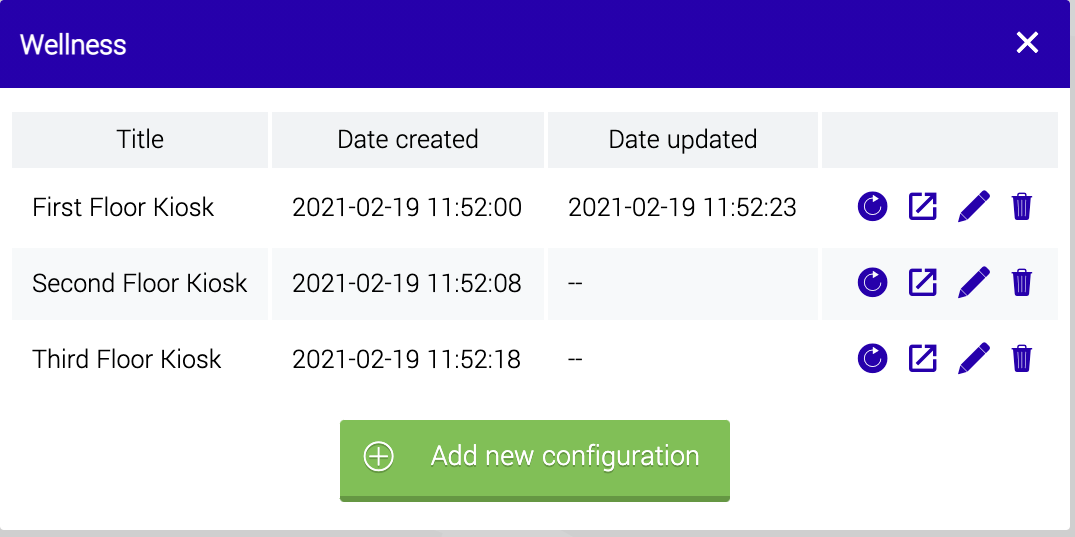

To add a new wellness kiosk, select “add new configuration” and then click on the pencil icon on the right-hand side of the popup to bring up the configuration page.

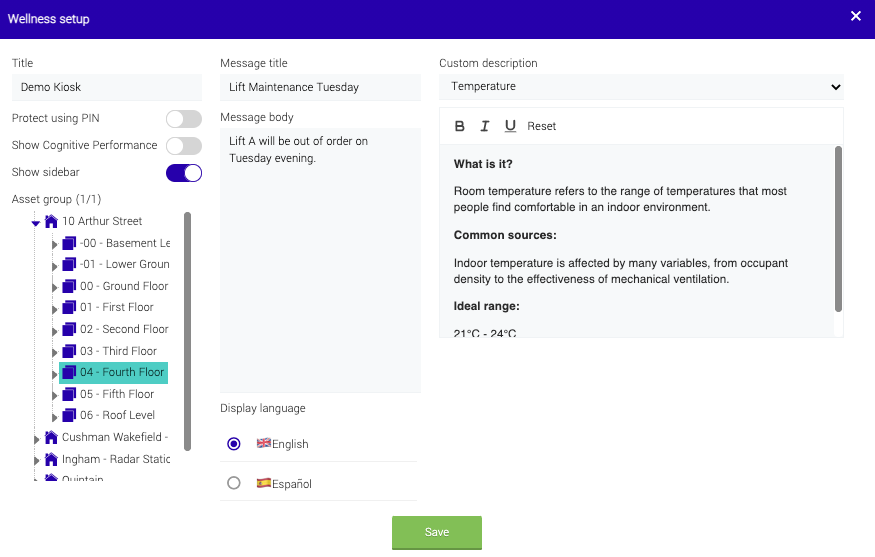

To configure your kiosk, you need to provide:

You can also choose to add the education sidebar by selecting the ‘Show sidebar’ toggle.

Once you have created your configuration, click "Save".

You can change your custom message for each of the parameters within the configurator. To change the text for a parameter, select the parameter whose text you would like to change in the ‘Custom Description’ dropdown. This will bring up the text currently displayed in this kiosk for that parameter.

Change the text in the box and click "Save".

You can change the text back to the default text by selecting ‘Reset’.

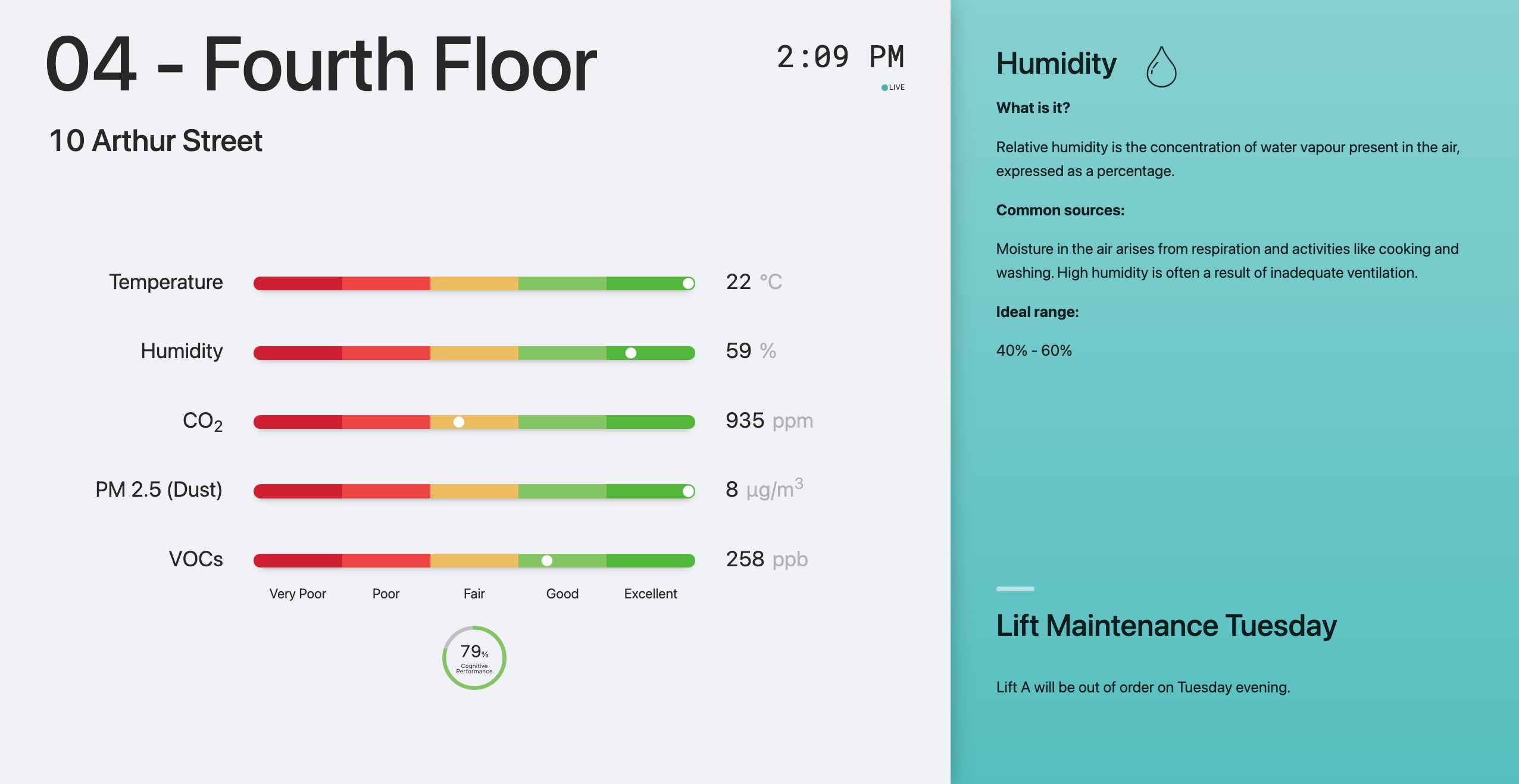

The Wellness Chart can also include a dial indicating the cognitive performance of your space. Cognitive performance is a reflection of how much the quality of your air impacts an individual's ability to conduct knowledge tasks and is expressed as a percentage.

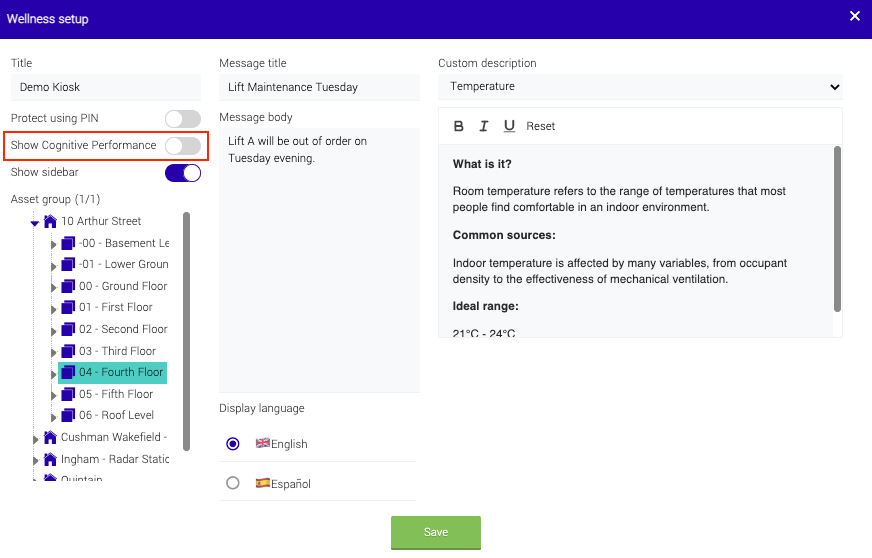

To add this dial to your wellness kiosk, you can toggle it on within the panel configuration settings.

 Displaying Your Kiosk

Any kiosk that has been created will be displayed in the Capacity window.

To the right, you will see the options for each kiosk panel:

To open your panel, select "Open Kiosk" and it will open to the kiosk in a tab in your browser. Each kiosk has its own unique URL that can be copied and pasted into other address bars to display the kiosk. The Kiosk will show a sidebar if at least one area was selected to compare the primary asset group with.

The Kiosk has two settings that are accessible within the tab it is displayed in. These are:

Once you have set up your Kiosk, we would recommend that you turn on full-screen to hide your address bar and your unique URL.

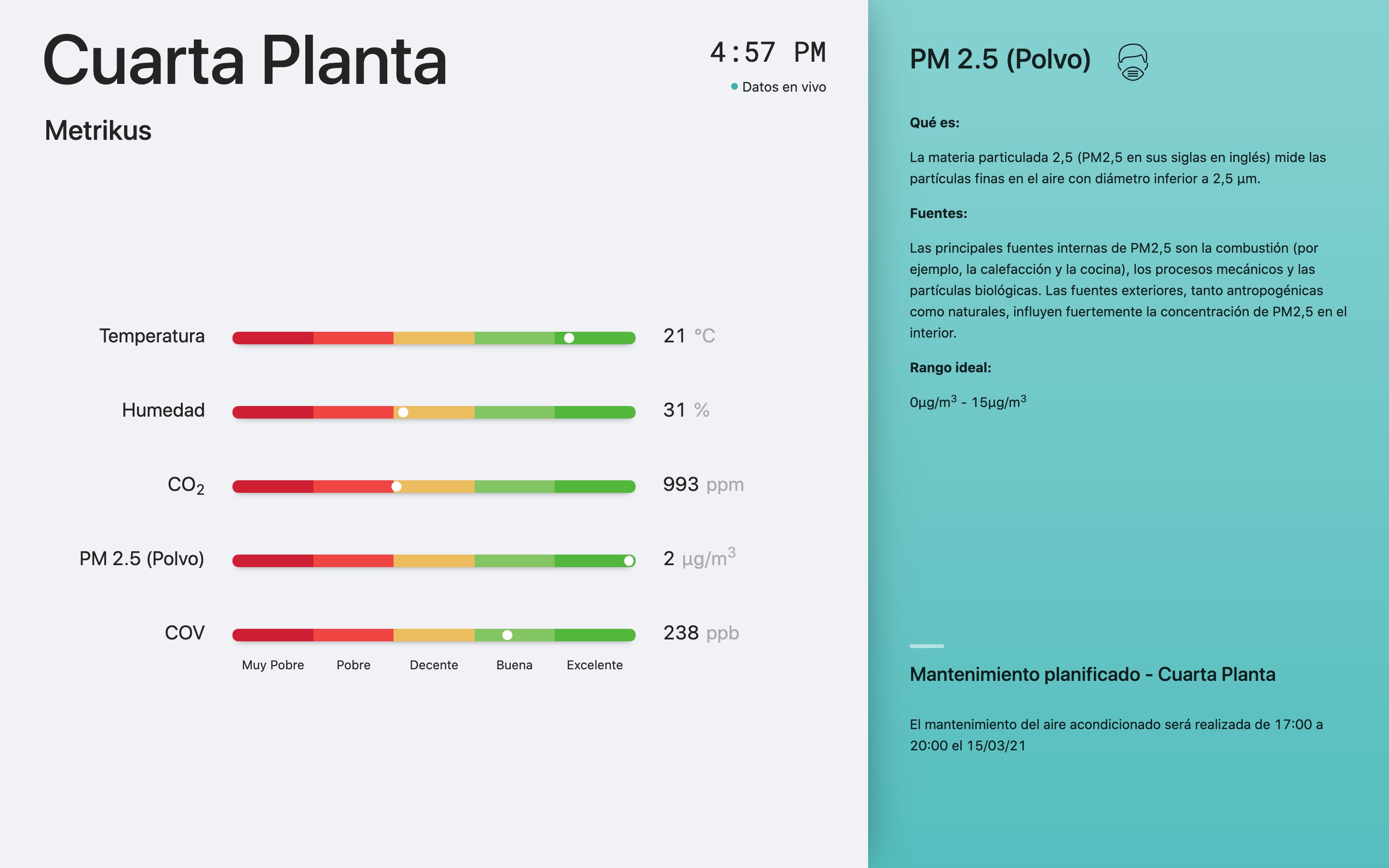

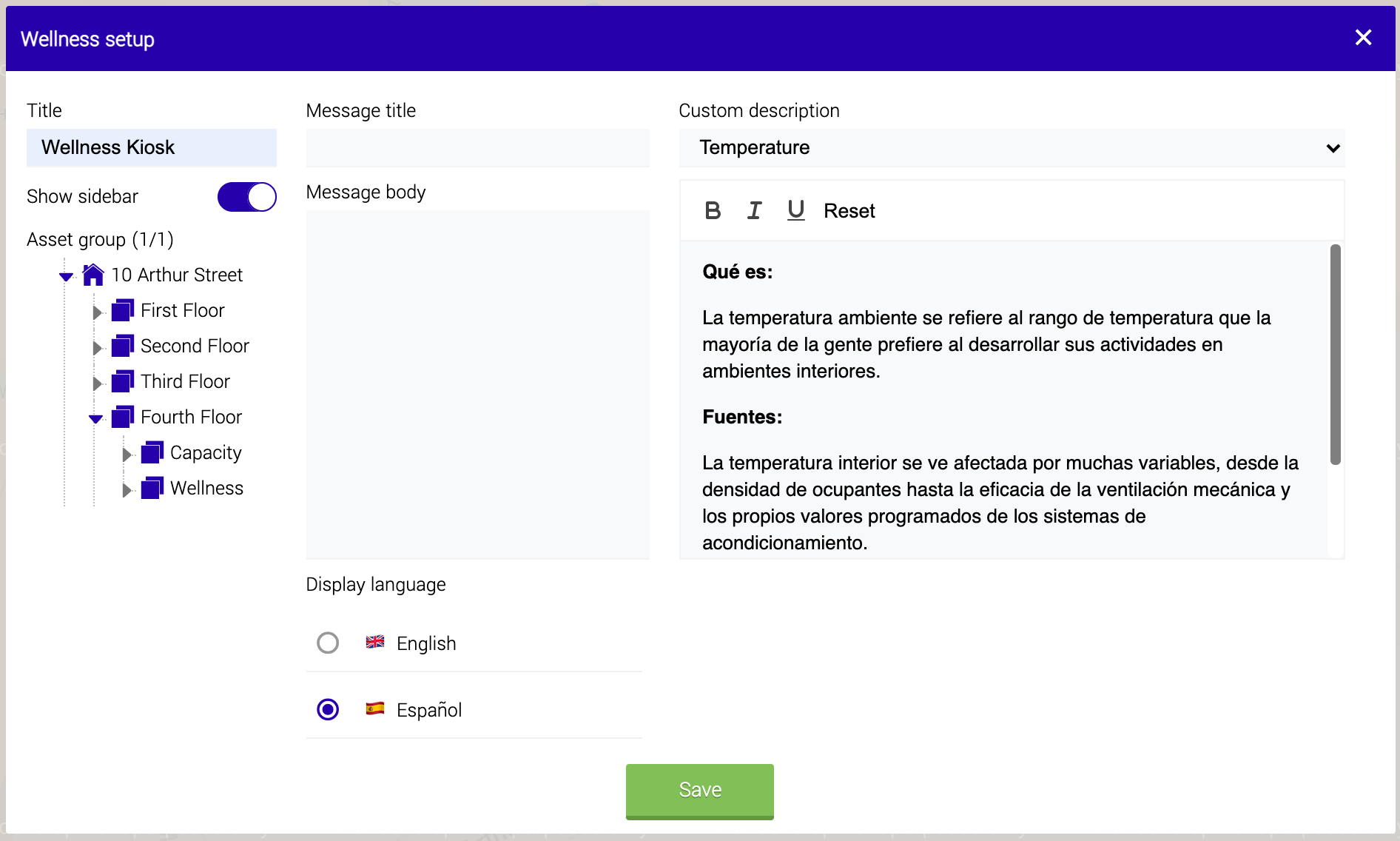

The Wellness Kiosk can be translated into other languages within the configuration window. To do this, select the toggle on the configuration tab to the language of your choice. We currently support English and Spanish.
