The Wellness Panel

Created by Lewis Bailey, Modified on Mon, 27 Jun, 2022 at 9:39 AM by Lewis Bailey

Maximise your indoor air quality with real time and historical information on the quality of air in your space

The Wellness panel provides an analysis of the current and historical state of indoor air quality in the selected area. With a combination of live dials and historical data, you can identify whether your building is operating within the indoor air quality thresholds you expect, identify which parameters are underperforming and at what times indoor air quality may be deteriorating.

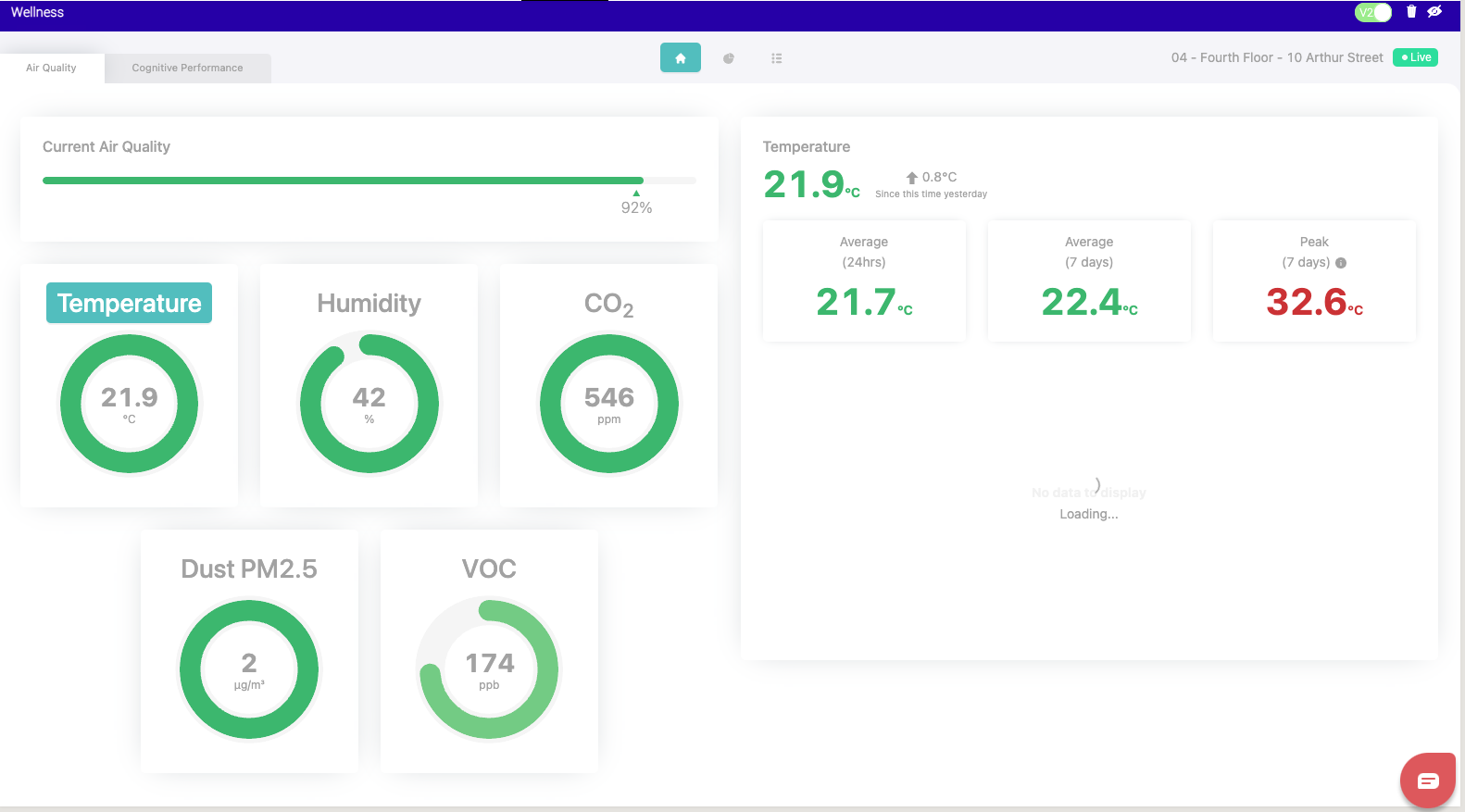

The Air Quality Diagram

The Air Quality diagram is calculated from 5 elements. All 5 elements have equal weighting to allow for a total score of 100%. Each element is calculated by the % of time the parameter remains outside of the set thresholds. For example, if the temperature is outside of the bounds for 25% of the day, the Air Quality will drop to 95%. The elements included in this diagram are:

Temperature: Relative temperature in celsius
Humidity: Relative humidity showed as a %.
CO2: Carbon Dioxide show as parts per million (ppm)
Dust: Particulate Matter 2.5 shown as micrograms per cubic metre (ug/m3)
TVOCs: Total Volatile Organic Compounds shown as parts per billion (ppb)

The Cognitive Performance Diagram

The Cognitive Performance diagram is broken down into 8 areas which are derived from CO2. Based on Harvard-Syracuse research, as CO2 concentration increases, these cognitive functions will begin to become impaired at different rates. The % rating is determined by calculating an average performance based on each cognitive ability being provided equal rating and a scale of 1-100.

Line Chart & Timeline

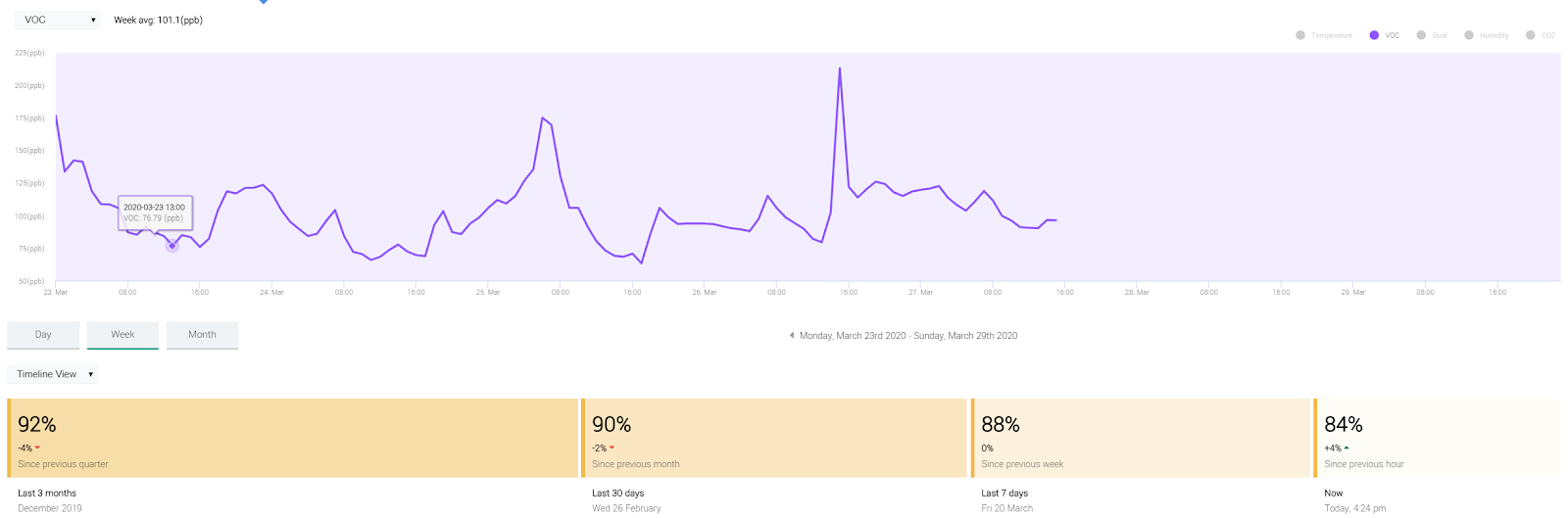

Each element within the diagram can be plotted by day, week, or month to detail concentrations over the course of the periods. The line chart will show the hourly value of the selected element.

To edit the graph:

Select the spider diagram you want to analyse further
Select the element you want to visualise by selecting it on the dropdown menu in the top left-hand corner
To view the datapoint, hover the cursor over the graph to bring up the tooltip.

Filters & Thresholds

The wellness panel calculates the score based on overlays that detail when the element has gone above or below a set threshold. You can set the thresholds in the filters window.

To access the filters:

Select the filter icon on the top right of the wellness panel ribbon.
For each element, provide a low value and a high value. Please note the unit cannot be reconfigured.
Click Save
